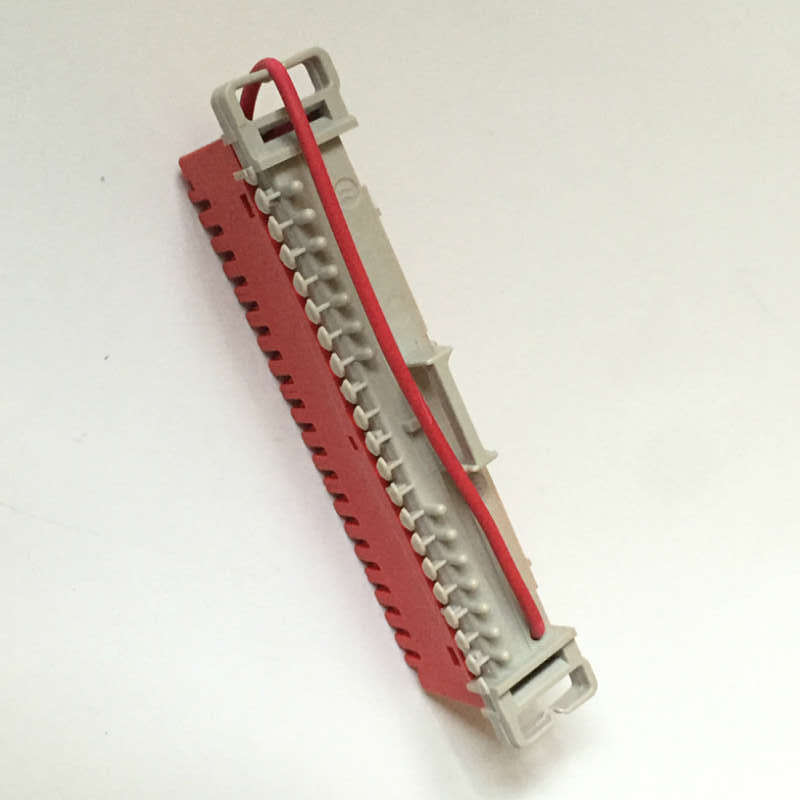

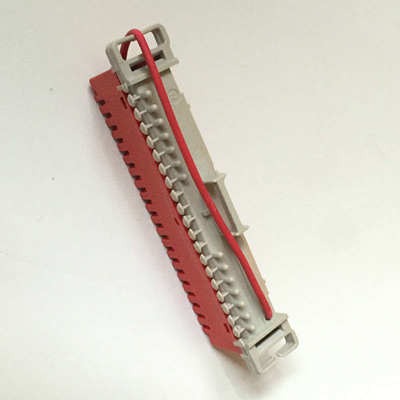

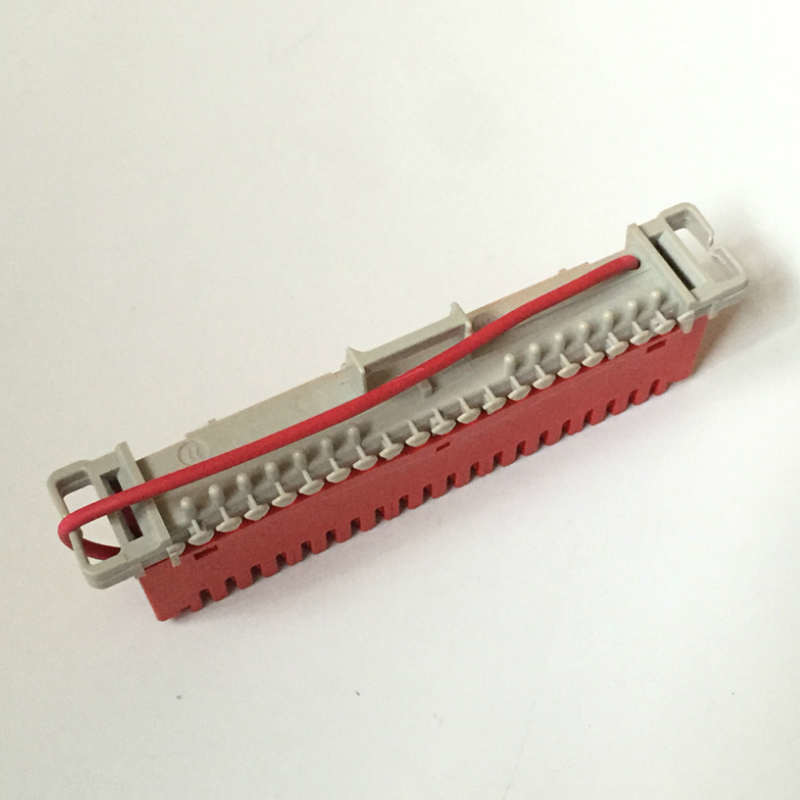

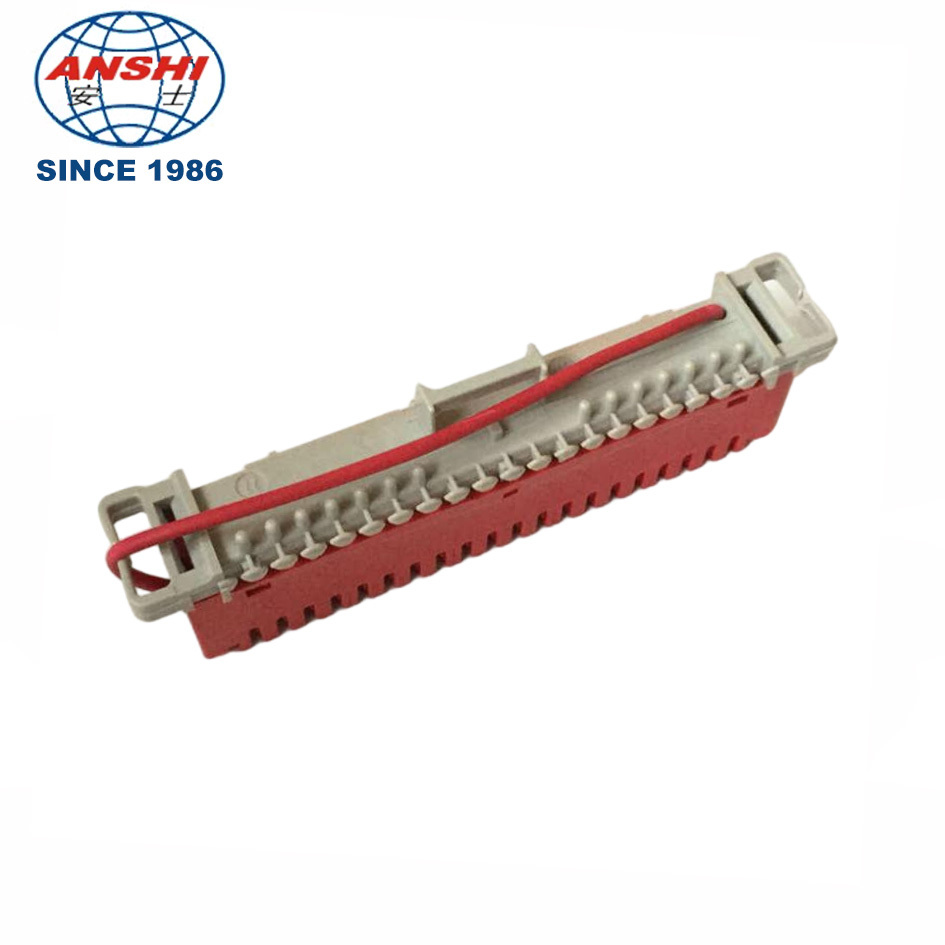

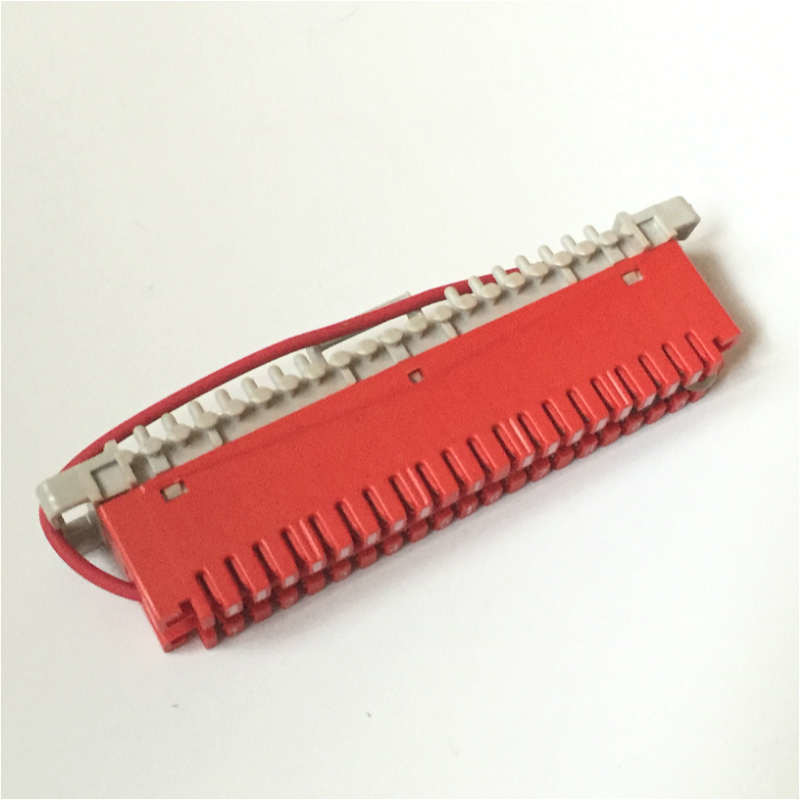

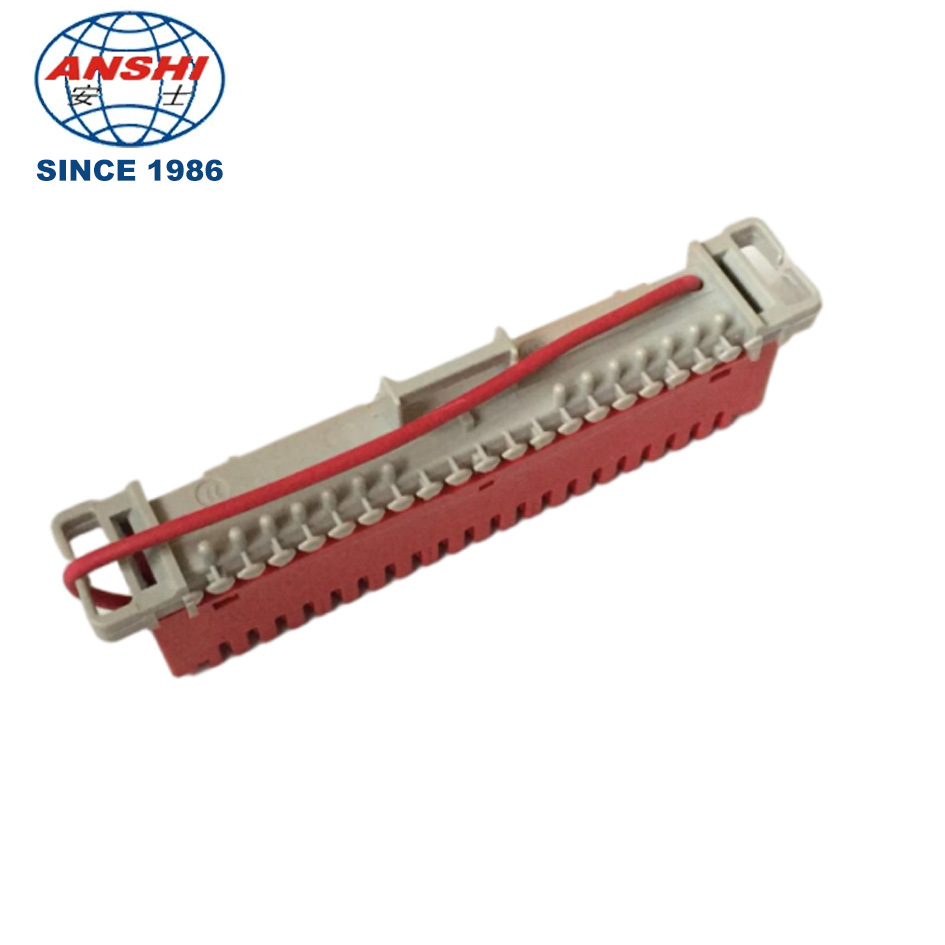

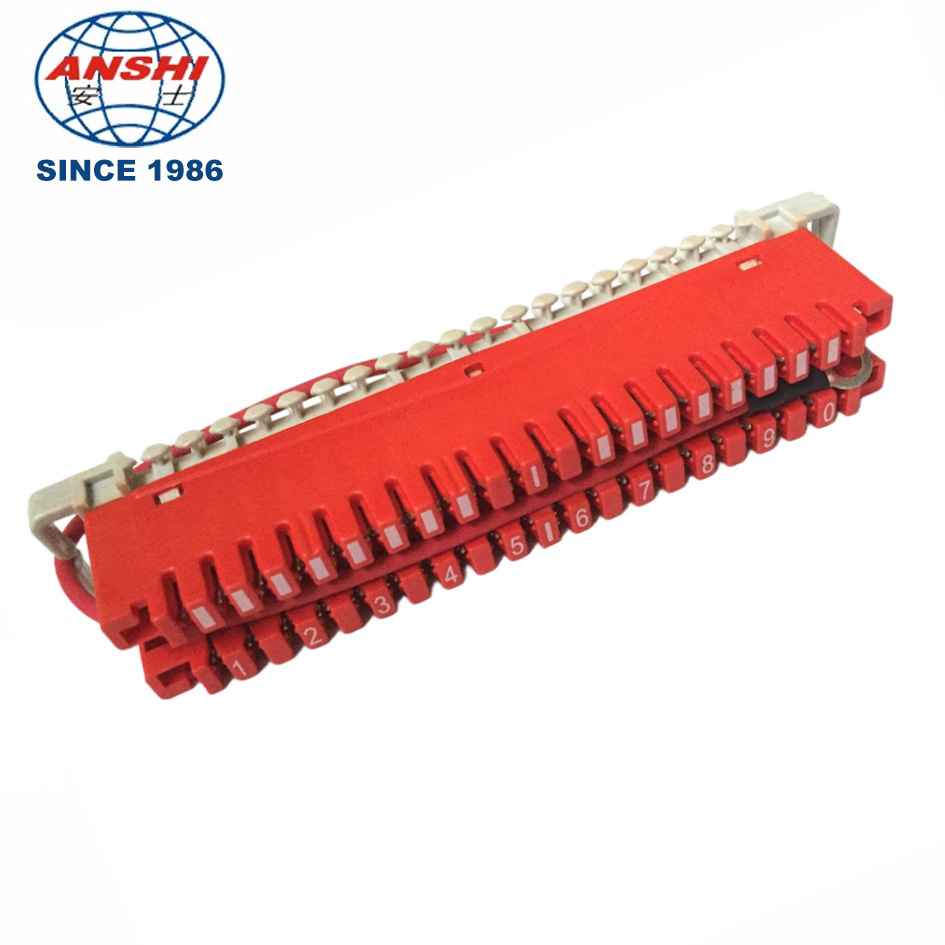

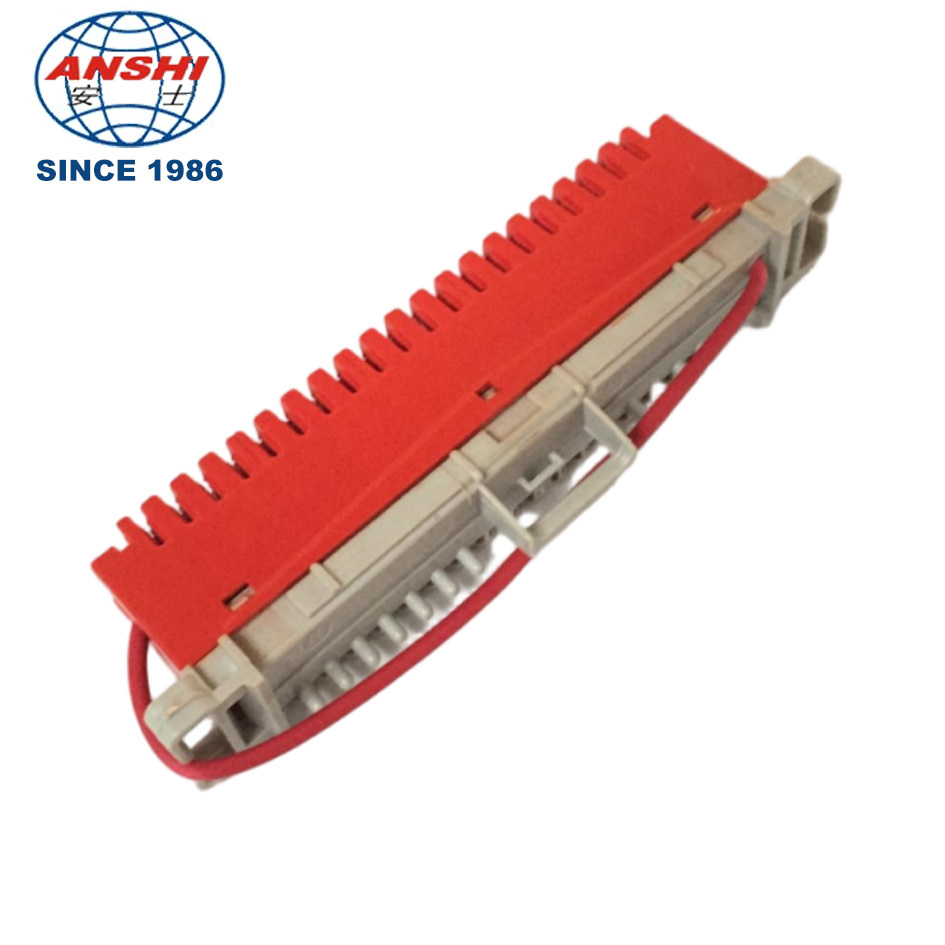

ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xMaterial | ABS or PBT | Color | Red and Grey |
---|---|---|---|
Type | Disconnection | Contact | Phosphor bronze with silver coating |
Application | Telecommunication | Protection Level | UL-94VO |
برجسته | ,,krone disconnection module |
ABS or PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
Quick Detail:
1. Material: PBT or ABS(UL94V-0)
2. Contact: Phosphor Bronze
3. Silver Plating: 0.5 um1.25 um5 um
4. Can be installed on krone type stainless steel back mount frames
5. Available with 50pair block tag and 100pair block tag.
6. for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.
2 types:
1.Clamp
2. Orbit
Applications:
High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.
Specifications :
Mechanical Performance | Insertion force : 40~75N |
Pull Out Force : F≥25N(axial) F≥7.5N(radial) | |
IDC Life : 200 times(20-26 AWG Solid wire) minimum | |
Copper Conductor Diameter: Φ0.4~Φ0.8(mm) | |
Environment Characteristic | Storage Tempreture: 40 to 70°C |
Operating Temperature : 10 to 60°C | |
Relative Humidity: 95%, noncondition | |
Electrical Performance | Insulation resistance: 1000 Mohms minimum |
Contact resistance :7 mohms maximum | |
Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s
|
Why you choose us:
1. 30 years manufactory experience
2. OEM/ODM available
3. Steady product quality
4. Strict quality control
5. Strictly conform to CE,ROHS,UL certificate
6. Quick delivery time
Disconnection Contact:
S2 Disconnection modules use a two piece contact (normally closed), with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test Cord can be inserted into a pair to test each side (look both ways) of the circuit independently. This greayly accelerates fault identification. The centre contact point can also be used for monitoring or over voltage protection.
Connection Contact:
Connection Modules have a one piece contact providing a continuous link between permanent wiring and jumper wiring, giving provision for monitoring access and overvoltage protection.
Switching Contact:
Switching Modules house individual contacts and hence the circuits are disconnected when
idle. By inserting plugs, cords or over voltage protection, the circuits can be connected when
necessary.
