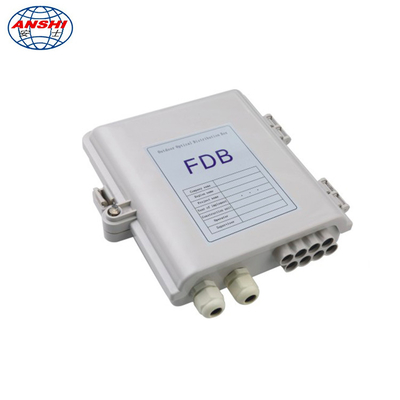

8 core Wall Mount Fiber Distribution Box with PLC splitter waterproof outdoor FAT Box

8 core Wall Mount Fiber Distribution Box with PLC splitter waterproof outdoor FAT Box

Production Description

Fiber optic distribution box is used for the distribution connection of cable and fiber optic communication

devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective

connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for

outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of

local cable or drop cable, with capacity of  8 cores.

Feature

• ABS material used ensures the body strong and light.
• Water-proof design for outdoor uses.

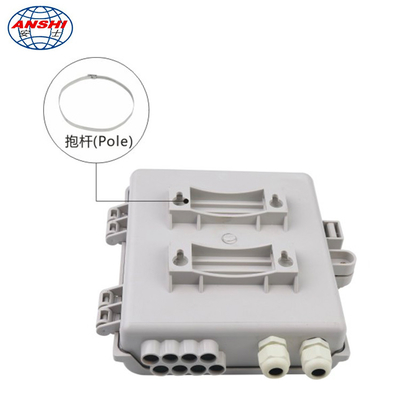

• Easy installations: Ready for wall mount – installation kits provided.

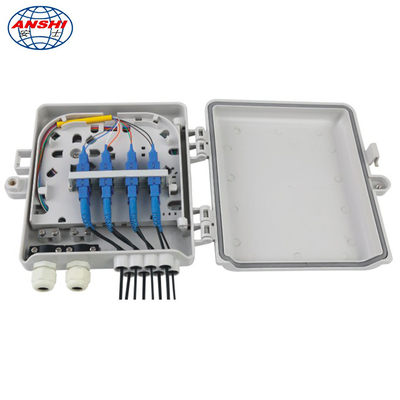

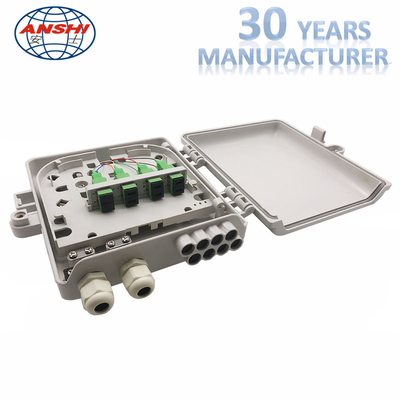

• Adapter slots used – No screws and tools needed for installing adapters.

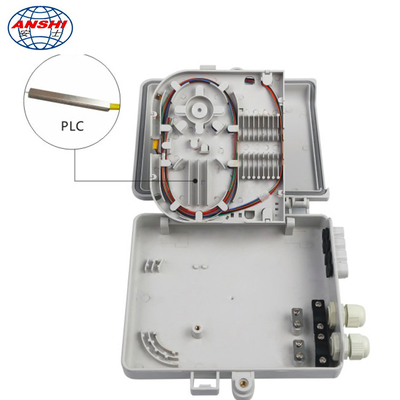

• Ready for splitters: designed space for adding splitters.

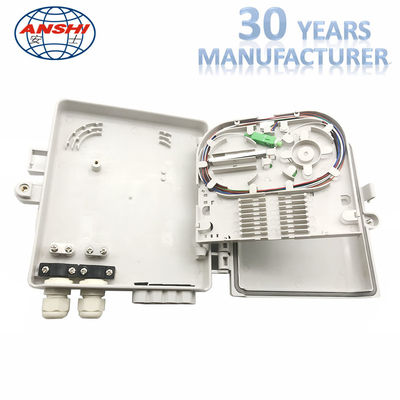

• Space saving! Double-layer design for easier installation and maintenances:
• Lower layer for splitters and over length fiber storage.
• Upper layer for splicing, cross-connecting and fiber distribution.
• Cable fixing units provided for fixing the outdoor optical cable.
• Protection Level: IP65.
• Accommodates both cable glands as well as tie-wraps
• Lock provided for extra security

Technical Parameter

Working temperature: -20°C~+60°C

Relative humidity: ≤90%(+30℃)

Atmosphere pressure:62-106Kpa

Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)

Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)

Accessories

Splice cassette and cable management tools, installation nuts and bolts,

heat shrinking tube, rubber seal, hose clamp.

Application

FTTH, FTTB, FTTC

Telecommunication Network

Local Area Network

CATV
