Quick Connector SC UPC Fiber Cable Accessories

محل منبع چین
نام تجاری ANSHI
گواهی ROHS, ISO9001
شماره مدل AS-ODF-KJT-SC / UPC-12
مقدار حداقل تعداد سفارش قابل توافق
قیمت Negotiable
قابلیت ارائه 500000 قطعه در هفته

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
نام محصول اتصال سریع طول موج کار طول موج کار
تکرارپذیری تکرارپذیری تایپ کنید SC / UPC
حالت Singlemode یا Multimode کاربرد سیستم FTTH
پیام بگذارید
توضیحات محصول

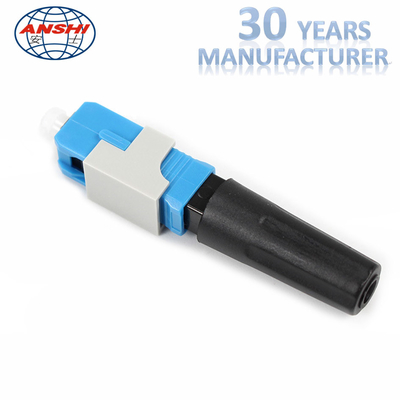

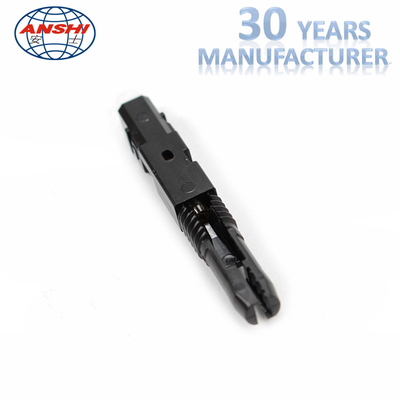

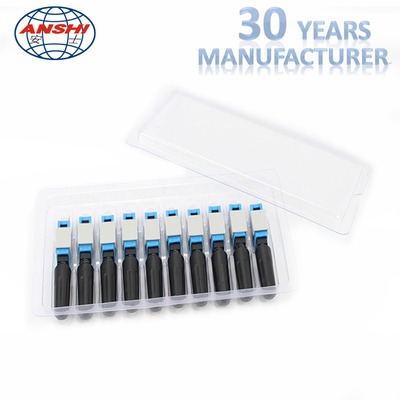

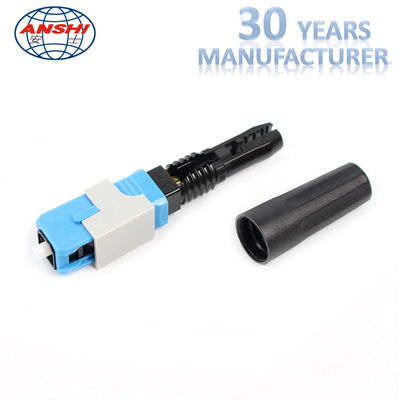

FTTH SC / UPC Optical Fiber Quick Connector Single Mode Fast Connector





Product Attributes

Supply pre-embedded FTTH SC/UPC fiber optic quick connector

Features:

1. FTTH project usable

2. Field installable

3. Insert loss less than 0.15dB

4. Metal V-shape cavity work well in high and low temperature

5. Installation less than 1 minutes

6. Reliable and superior optical performance

7. Cable Tensile test complies with Telcordia GR-326-COR



Application:

1. Distribution frames

2. Maintenance or emergency restoration of fiber networks

3. Patch panels

4. FTTH Outlets

5. Field word



ITEM Technical Parameters
Applicable for

Drop cable / Indoor cable

0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable

Optical fiber diameter

SM(9/125), MM(50/125, 62.5/125)

125μm ( 657A & 657B )

Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >50 N
Using temperature -40~+85°C
On-line tensile strength (20 N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times) IL ≤ 0.
