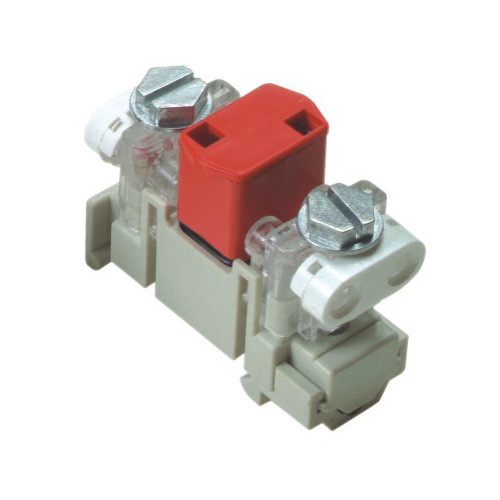

DIN Rack Install Subscriber Terminal Block VX module With / Without Protection

محل منبع China
نام تجاری ANSHI
گواهی ROHS, ISO9001
شماره مدل AS-STB-P-1
مقدار حداقل تعداد سفارش 200
قیمت Negotiable
قابلیت ارائه 5000pcs/week

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
name VX module Environment condition 5-40 degree Celsius ,Relative humidity <85% (+30 degree Celsius),Atmospheric pressure, 70-106KPa
plate silver 20-40uinch pulling-out force not less than 25N
standard GB/T 5169.7-1985 material pc
install DIN rack Protective GDT
برجسته

,

,

telecom distribution box

پیام بگذارید
توضیحات محصول
Subscriber Terminal Block STB module with / without protection against over voltage


Applications and feature:

- STB is a high reliability connection module, designed to withstand all existing climates.

- Watertight by design, it provides the best service for the following applications:

- Interface boxes UG/Aerial/Networks

- Distribution points

-Customer termination devices

- Fits on DIN 35 rails

- Very compact, overall dimensions allow to replace existing won protected solution by a high reliability solution.

- No special tool required, only by a standard screw driver.

Range of the section: diameter 0,4… 1,2 mm
Diameter on the isolation: it is maximal 5 mm
The current-response characteristics: 20 A(10 A on each conductor) during not less than 10 min, without the deformation of the module
Insulation resistance
“Dry” atmosphere: > 10 12 Ohm
“Moist” atmosphere (standard ASTM Of d618, procedure F): > 10 12 Om
Salt fog: (standard ASTM Of b117) > 10 10 Ohm
Immersion beside the water: (15 days before 3% solution Of naCI) > 10 10 0m
The contact resistance
R of material + R of the contact cross connection + by R of the contact connection of the wires < 10 m
Increase in the contact resistance
After climatic testings: <2,5 m
After 50 connections - turning offs: <2,5 m
Dielectric strength: >3 kV of direct current during 1 minute



Mechanical characteristics

Screw of the connection of the pair of the distributive wire: Special alloy Of zamac, [passivirovannyy], with the paint and varnish coat
Housing of the unit of the connection Transparent polycarbonate
the distributive wire: Housing: Polycarbonate, glass-reinforced, resistance to fire “VO”
Fitted contacts: Tinplated phosphor bronze
Contacts of the grounding: Alloy Cu - Zn - Ni - Ag
Contacts of the connection: Tinplated solid bronze
Sealing material before the lower part: The epoxy resin
Sealing material before the upper cable part: Silicon compound
Cover of the pair of the distributive wire: Polycarbonate
Housing of the insertable module: Polycarbonate, glass-reinforced, resistance to fire “VO”
Sealing material of the insertable module: Gel
The ring gasket: Elastomer EPDM
Spring: the stainless steel
Cable laying is the distributive wire: Thermoplastic rubber
